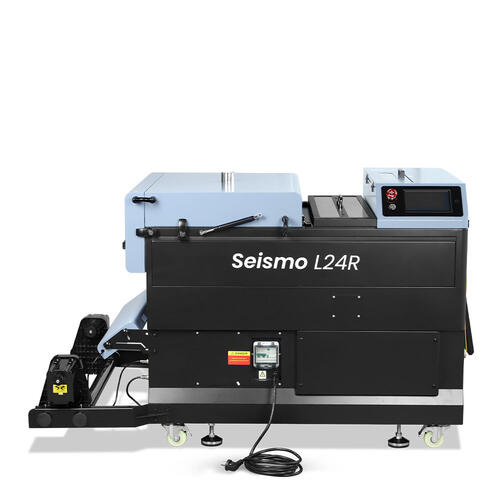

DTF Station Seismo L24R DTF Powder Applicator Built In Recirculation System

incl GST {{ selectedOption.saleSavingsPercent }}% OFF

Serves: {{selectedOption.serves}}

- +

Stock Notification

We are unable to ship this product. Available at our retail store only.

SKU #

The DTF Station Seismo L24 DTF Powder Applicator Built In Recirculation System is a versatile, professional-grade DTF powder shaker and dryer that is perfect for businesses. This 2-in-1 machine can handle both powder shaking and film curing, saving you time and effort. The intelligent sensor system ensures stable curving quality while consuming less power, making it an energy-efficient option. In addition, the conveyor and suction system make initial film feeding easier, further boosting the machine’s efficiency.

The Seismo L24R also features an auto-recirculating system that collects excess powder for refilling, making the process more convenient. Compared to other Seismo powder shakers, the L24R is the best option for factories and advanced users, as it includes all the necessary features and can handle the largest printing size of 60cm.

Features

  • Suitable for Business Use: The Seismo L24R is designed for business use, with features that improve efficiency, reduce material waste, and save time and money. This makes it an ideal solution for printing factories or DTF printing business owners who need to keep their printers running for extended periods.
  • Large Media Width: The Seismo L24R has a large media width of 60cm, allowing for the printing of larger designs without any issues. This feature provides greater design flexibility and allows printing on a wider range of materials.
  • Auto-Recirculating System: The Seismo L24R comes with an auto-recirculating system that automatically collects excess powder for refilling, eliminating the need for manual powder collection and refilling. This feature increases efficiency, saves time, and reduces the chances of powder spillage or mess.
  • Intelligent Sensor System: With the intelligent sensor system in place, the Seismo L24R ensures stable curving quality while consuming less power. This results in energy savings, reduces overall operating costs, and improves the quality of the final product.
  • Conveyor and Suction System: The conveyor and suction system on the Seismo L24R make it easier to feed the initial film into the machine, reducing setup time and effort. This feature improves overall efficiency and reduces the chances of film misalignment or errors.
  • Powder Filling Box: The powder filling box on the Seismo L24R provides a convenient way to refill the powder without causing any mess or spillage. This saves time, ensures even powder application, and improves overall efficiency.
  • Powder Drying Function: Its built-in powder drying function on the Seismo L24R dries the powder-coated film quickly and efficiently, reducing the drying time and improving overall efficiency. This feature ensures faster turnaround time and increases the number of prints that can be produced in a given timeframe.
  • Easy Maintenance: The Seismo L24R DTF powder shaker and dryer is easy to maintain, with simple cleaning procedures that can be completed quickly. This feature reduces downtime, ensures that the machine is always in optimal condition, and extends the lifespan of the machine.

Interest Free and Long Term Finance available for this product.  Click here for approval or click here for more information

Model Name

Seismo L24R

Max Film Width

60cm(24″)

Powder Recycling

Every 4 to 5 hours manually (keep printing)

Power Requirements

3KW-5.2KW,  220V Only

Maximum amount of powder

2-3 KG

Powder Filling Box

YES

Powder Collection Drawer

NO

Product Weight

190kg

Packaging Weight

240kg

Machine Dimensions

1620mm*912mm*992mm

Packaging Dimensions

1420mm*1120mm*1113mm

Warranty

One year warranty

Structure

1. Self-developed control system with DTF Station logo and a sensor system to keep the shaker running at a lower power consumption while maintaining stable curving quality.
2. Self-developed auto-recirculating system.
3. Conveyor and suction system for easier initial film feeding.

Reason to Develop This Model

The Seismo L24R was developed to enable fewer people to run more machines. The goal was to create an auto-recirculation system that was not only easy to use but also stable and easy to maintain. This model is user-friendly and requires minimal after-sales service, making it an ideal choice for dealers.

Daily Maintenance

The powder needs to be reloaded every 4 to 5 hours (based on 2 Epson I3200 heads keep printing). The machine is easy to clean before finishing daily work.

Suitable Users

DTF printing users with a printer width less than 60cm
